P/N 199000

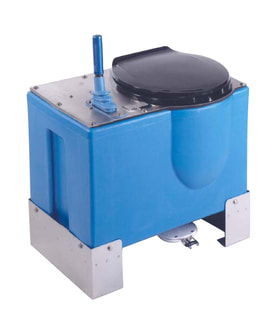

The 199000 toilet utilizes a manualy operated flush pump to flush wastes which have been deposited in the molded polyethylene toilet bowl, on top of the toilet. The flushing fluid is filtered by an internal filter system. Odor control of this liquid is obtained by periodic chemical treatment of the toilet contents. The flush pump provides a high-pressure flush fluid output that swirls around the bowl several times before exiting at the bottom of the bowl. This method of flushing provides fast, effective, and efficient cleaning action.
When completely full of collected wastes, the toilet is serviced by opening the drain valve attached to and under the tank. This method allows the waste contents to drain into an appropriate sewer connection or another authorized dumping site or equivalent. This type of sanitation system represents the most reliable, easy to operate simple system, yet devised to prevent the direct discharge of waste materials into the environment. It requires no external power sources, contains no motors that need replacement, and does not need complex mechanisms that can become clogged or inoperative.
The 199000 toilet utilizes a manualy operated flush pump to flush wastes which have been deposited in the molded polyethylene toilet bowl, on top of the toilet. The flushing fluid is filtered by an internal filter system. Odor control of this liquid is obtained by periodic chemical treatment of the toilet contents. The flush pump provides a high-pressure flush fluid output that swirls around the bowl several times before exiting at the bottom of the bowl. This method of flushing provides fast, effective, and efficient cleaning action.
When completely full of collected wastes, the toilet is serviced by opening the drain valve attached to and under the tank. This method allows the waste contents to drain into an appropriate sewer connection or another authorized dumping site or equivalent. This type of sanitation system represents the most reliable, easy to operate simple system, yet devised to prevent the direct discharge of waste materials into the environment. It requires no external power sources, contains no motors that need replacement, and does not need complex mechanisms that can become clogged or inoperative.
INCA RAILROAD TOILET SYSTEM SPECIFICATIONS
Part Number 199000
Part Number 199000
|
Description
Weight Empty Weight Full Dimensions (overall) Dimensions (base) Pre-charge Usable Capacity Tank Cover Toilet Bowl Toilet Seat Flush Pump Mounting Legs Disposal Outlet Filter Design |
Toilet, Portable, Re-circulating/Retention Manual Flush, Chemical Odor Control, Commercial/Industrial Heavy Usage.
40 lbs. 165 lbs. 24.125" wide, 19.0" deep and 19.75" high 24.125" wide X 15.750" deep 1-1/2 gallons 13 gallons 3/8" thick (minimum wall) rotational cast linear high-density polyethylene, blue, UV inhibited 16 gage stainless steel #4 finish, with closed cell, neoprene gasket seal Molded Polyethylene, integral as part of tank top Open front, commercial, full size, solid plastic Cast aluminum 3/8" wall thickness (min.), aircraft grade, deep anodized. Diaphragm manually actuated. Valves: EPR rubber. Diaphrahm: EPR with cross-linked Polyester fibers. Aluminum 14 gage #4 finish, 2/unit Bottom drain, 3" slide valve, clamp mounted. Fits standard floor flange and seal Fully enclosed passive type, stainless steel, 16-gauge, perforated 1/8" pore size on 3/16" centers. Meets AAR clean cab requirements |
|
